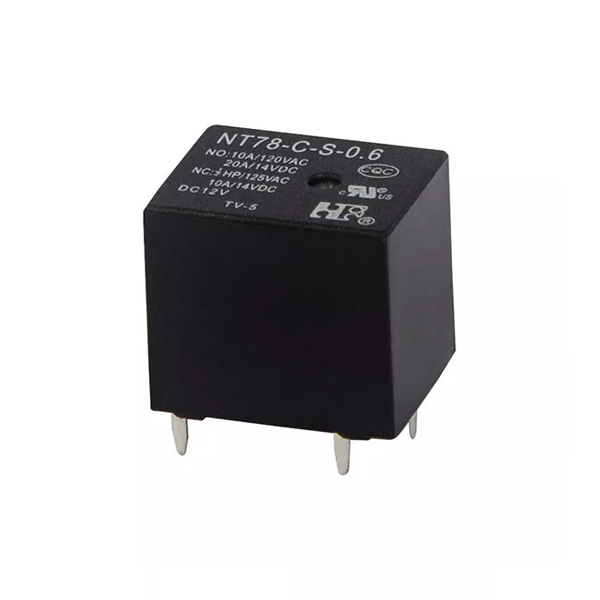

What is Automotive Relay

An automotive relay is an electrically operated switch used in vehicles to control a high-current circuit with a low-current signal. It allows smaller, lower-power components (like switches or electronic control units) to safely and efficiently control larger loads, such as:

Headlights

Fuel pumps

Radiator fans

Starter motors

Air conditioning systems

How It Works:

An automotive relay typically consists of:

Coil – When energized by a small electric current, it generates a magnetic field.

Armature (switching mechanism) – Pulled by the magnetic field to open or close the circuit.

Contacts – The conductive parts that open or close the high-current circuit.

Spring – Returns the armature to its original position when the coil is de-energized.

Common Types of Automotive Relays:

SPST (Single Pole Single Throw) – Simple on/off relay.

SPDT (Single Pole Double Throw) – One input, switches between two outputs.

DPDT (Double Pole Double Throw) – Controls two separate circuits.

Benefits:

Protects sensitive electronics from high current.

Extends the life of switches.

Enables control of high-power devices with compact, low-power systems.

Enhances safety and reliability of electrical systems in vehicles.
