What Is a DC MCCB and Why Is It Essential for DC Applications?

The growing reliance on direct current (DC) systems in industries like renewable energy, electric vehicles, and telecommunications has created a demand for reliable safety components. DC molded case circuit breakers (MCCBs) are among the most critical components for protecting DC circuits from faults. Let’s explore what DC MCCBs are and why they are essential for DC applications.

What Is a DC MCCB?

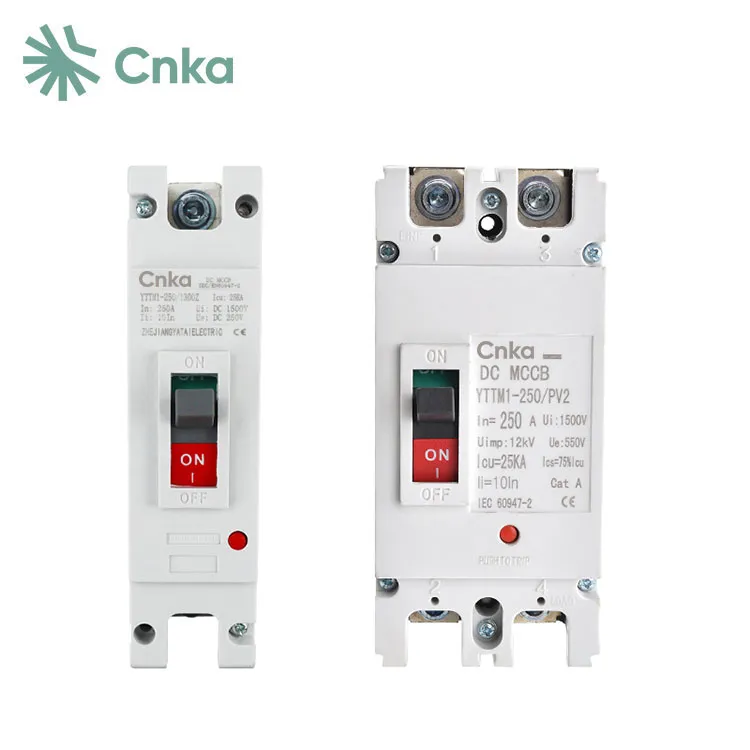

A DC MCCB (Molded Case Circuit Breaker) is an electrical protection device designed specifically to handle direct current circuits. It safeguards electrical systems by interrupting current flow during overloads, short circuits, or other faults, thereby preventing damage to equipment and reducing fire risks.

Key Features of DC MCCBs

1. High Interrupting Capacity:

  DC MCCBs are built to interrupt high fault currents, ensuring safe operation in demanding environments.

2. Arc Suppression:

  Breaking DC circuits is challenging due to the absence of a natural zero crossing in current flow. DC MCCBs use advanced arc extinguishing mechanisms to handle this effectively.

3. Wide Voltage and Current Range:

  Available in various ratings to accommodate diverse applications, from low-voltage systems to high-power installations.

4. Durable Construction:

  Encased in a molded shell for added protection against dust, moisture, and other environmental factors.

Why Are DC MCCBs Essential for DC Applications?

1. Protection Against Electrical Faults:

  DC MCCBs prevent overheating, equipment damage, and fire hazards by isolating faulty circuits.

2. Reliable Operation in DC Systems:

  Unlike AC systems, DC circuits present unique challenges, such as constant current flow. DC MCCBs are designed to handle these challenges effectively.

3. Compliance with Standards:

  High-quality DC MCCBs comply with international safety standards, ensuring reliable performance in critical systems.

4. Versatility:

  Suitable for a variety of applications, including renewable energy systems, electric vehicle chargers, and industrial machinery.

Applications of DC MCCBs

1. Solar Power Systems:

  Protect photovoltaic panels and inverters by isolating faults in the DC wiring.

2. Electric Vehicles:

  Safeguard onboard DC systems and charging stations.

3. Telecommunications:

  Protect sensitive equipment in DC-powered telecom networks.

4. Battery Storage Systems:

  Prevent overcurrent and short circuits in battery arrays.

DC MCCBs are indispensable for ensuring the safety and reliability of DC electrical systems. By protecting circuits from faults, they play a vital role in enabling the safe and efficient operation of modern technologies. When selecting a DC MCCB, consider factors like voltage rating, current capacity, and compliance with standards to ensure optimal performance in your application.
