Exploring the 850nm 10mW DIL Package Superluminescent Diode

In the realm of optical and photonic applications, Superluminescent Diodes (SLEDs) are becoming an indispensable component for a variety of systems, particularly where high coherence and wide bandwidth are required. One such device that stands out is the 850nm 10mW DIL Package SLED. This diode is engineered to deliver high brightness, low coherence, and superior performance, making it ideal for applications in optical coherence tomography (OCT), fiber optic communications, and sensor systems. In this blog, we’ll dive into the features, benefits, and potential applications of this powerful optical component.

What is a Superluminescent Diode (SLED)?

A Superluminescent Diode (SLED) is a type of semiconductor diode that emits light through spontaneous emission, similar to a laser. However, unlike traditional lasers, SLEDs do not have the same level of coherence, meaning they emit light with a broader wavelength spectrum. This characteristic makes them especially useful in fields where wideband light is needed, such as in imaging and sensing technologies.

The key difference between SLEDs and regular LEDs or lasers lies in the coherence of the emitted light. While lasers produce highly coherent (narrow bandwidth) light, SLEDs offer a broader spectral output, giving them the ability to provide high power without the spatial coherence of lasers.

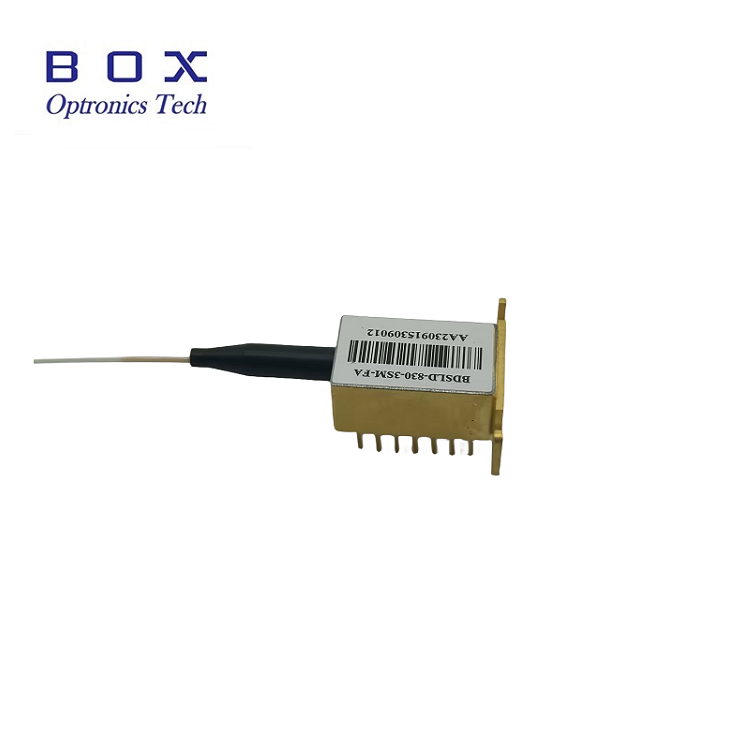

850nm 10mW DIL Package SLED: Key Features

The 850nm 10mW SLED in a DIL (Dual In-Line Package) configuration offers a range of features that make it suitable for demanding applications in optical and photonics industries. Here are the primary characteristics:

1. Wavelength:

  The 850nm wavelength is commonly used in optical applications because it falls within the near-infrared (NIR) range. This wavelength is particularly suitable for fiber optic communications, medical imaging, and biomedical research. It offers good penetration depth for biological tissues, making it an excellent choice for optical coherence tomography (OCT) and other imaging technologies.

2. Output Power (10mW):

  At 10mW, the 850nm SLED provides enough optical power for a range of applications, offering higher intensity compared to standard LEDs, while maintaining the broad spectral output. The 10mW power level is ideal for achieving optimal signal strength without overloading sensitive components.

3. DIL Package:

  The Dual In-Line Package (DIL) is a popular configuration for packaging photonic devices like SLEDs. The DIL package ensures easy integration into a wide variety of circuit boards, making it simple to incorporate the device into both prototype systems and commercial products. Its compact and reliable form factor allows for efficient heat dissipation and protection against environmental factors.

4. Low Coherence Light:

  One of the most important features of this SLED is its low coherence light. The broad spectral output from the SLED makes it ideal for imaging and sensing applications, where high coherence can lead to artifacts or noise in the data. The lower coherence helps to reduce interference, making the SLED well-suited for use in applications requiring high precision and clarity.

Benefits of Using the 850nm 10mW SLED

1. Higher Performance in Imaging and Sensing

  The wide spectral output of the 850nm SLED makes it ideal for applications in optical coherence tomography (OCT). OCT systems rely on light that is scattered back from tissue to create high-resolution images of internal structures. The low coherence and high brightness of the 850nm SLED make it an excellent light source for capturing detailed images without the interference that could arise from the narrower coherence of laser systems.

2. Efficient and Reliable

  The 10mW power output combined with the DIL package provides a reliable, consistent source of light, which is essential in systems that require precision and stability over long periods. The DIL package also ensures that the SLED is robust and can perform well even in harsh conditions, offering durability and ease of integration into various applications.

3. Cost-Effective for Broad Applications

  Compared to traditional lasers, SLEDs are often more cost-effective while still offering performance that is suitable for many high-end applications. The 850nm SLED offers the perfect balance between cost and performance, making it ideal for use in laboratories, medical devices, and industrial sensors.

4. Versatility Across Industries

  The 850nm SLED can be used in a variety of fields, from medical imaging (like OCT) to fiber optic communications, sensor networks, and biotechnology. Its ability to emit light in the near-infrared spectrum makes it suitable for a wide range of optical systems, from research to commercial products.

Applications of the 850nm 10mW SLED

1. Optical Coherence Tomography (OCT)

  The 850nm SLED is widely used in OCT systems for medical imaging. OCT is a non-invasive imaging technique that provides high-resolution cross-sectional images of biological tissues. The 850nm wavelength allows for optimal tissue penetration and image clarity, especially in ophthalmology and dermatology, where high-quality imaging is crucial for accurate diagnoses.

2. Fiber Optic Communications

  In fiber optic systems, the 850nm wavelength is commonly used because it aligns with the peak transmission window of standard multimode fiber optics. The 10mW power output of the SLED ensures that data can be transmitted efficiently across the fiber network with minimal signal loss and distortion.

3. Biomedical Research

  SLEDs are widely used in biomedical research for fluorescence excitation, optical sensing, and light-based spectroscopy. The low coherence nature of the light helps researchers obtain more accurate and noise-free measurements, making the 850nm SLED a versatile tool for cell imaging, protein analysis, and other research applications.

4. Environmental and Industrial Sensing

  SLEDs are also employed in environmental and industrial sensing systems, such as gas detection and pollution monitoring. The wide spectral output makes these devices suitable for detecting a range of materials and compounds by analyzing how they absorb or scatter light at different wavelengths.

The 850nm 10mW DIL Package SLED is an incredibly versatile and high-performance optical component that offers a variety of benefits across several industries. From medical imaging to communications and environmental sensing, this SLED’s ability to emit low coherence light with high power makes it an ideal choice for precise and efficient applications. Its compact DIL package ensures ease of integration, while its cost-effectiveness provides a reliable solution for both commercial and research-based projects.
